Home > PCIe Single Port 100M/1000M Copper Server/Desktop adapter

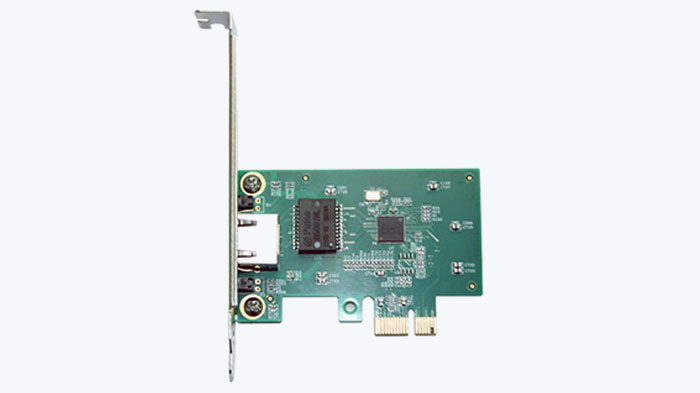

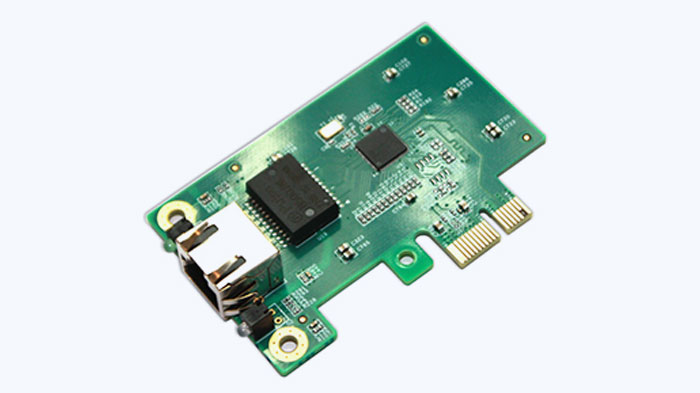

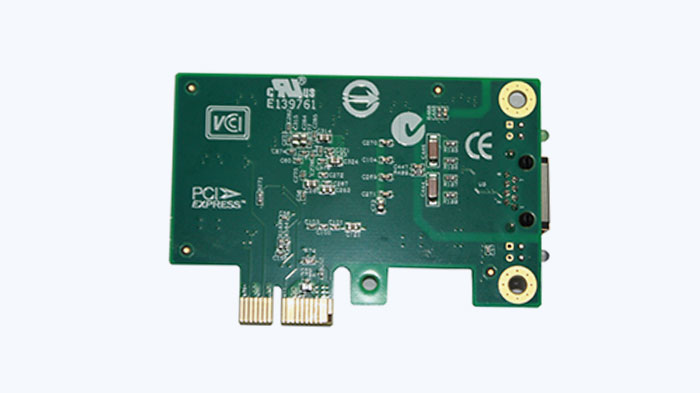

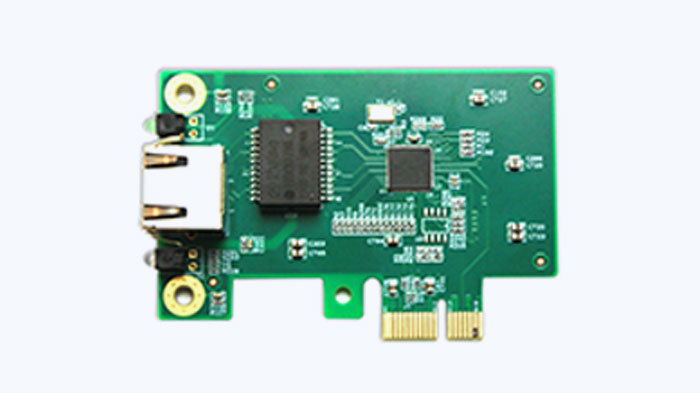

PCIe Single Port 100M/1000M Copper Server/Desktop adapter

  • Details
  • Specifications
  • packing

FM-WGI211AT-T1 is a gigabit Ethernet interface network card based on Intel I211 chip. It has a 1GbE RJ45 interface, which can support 1000mbps of transmission bandwidth, and supports PCI-E X1 standard slot, ensuring the efficient and stable operation of the network card. In addition, the network card also supports VLAN, QOS policy, flow control and other functions, which are suitable for medium and large LAN applications.

Product Description

  • Support 100M/1GGbps single RJ45 interface;
  • The interface standard supports PCI Express 2.0;
  • Low cost, low power consumption, energy saving Ethernet and DMA combined.
  • Single port 2500MBASE-T controller with integrated MAC and PHY 2500Mbps Ethernet network transition
Product Code FM-WGI211AT-T1
Product Name PCIe Single Port Gigabit Copper Server adapter
Chip-set Intel WGI211 Gigabit Controller
Bus Type  PCIe v2.1 (2.5 GT/s) X1/X4/X8/X16
Every Port Transmission Rate 100M/1000M
Network interface type RJ45 Slot *1
Brackets Half and Full Brackets
Operating Temperature 0℃~55℃(32 °F to 131 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Network Standards IEEE 802.3bz(1000BASE-T)

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3i 10BASE-T

IEEE 802.3x Full Duplex and Flow Control

IEEE 802.3ad Link Aggregation for Parallel Links


IEEE 1588

IEEE 802.3az Energy Efficient Ethernet (EEE)

Compatible operating system Windows*32 7/8/8.1/10, Windows*64 7/8/8.1/10, Linux* RHEL6.x/7.x/8.0,Linux* SLES11.x /12.x/15.x,Linux* Ubuntu*14.x/16.x /18.x LTS, Linux* FreeBSD* 10.x/11.x/12.x
Special functions Intel Virtualization Technology for Connectivity;

With virtual machine device queue (VMDq) and SR-IOV;

Advanced packet filtering (by port);

VLAN support, VLAN tag insertion, removal and packet filtering;

ISCSI acceleration, iSCSI remote boot;

Adapter fault tolerance and switch fault tolerance;

Adaptive load balancing;

Grouping support;

TCP checksum offload, TCP segmentation/large send offload, and interrupt mitigation;

IPv6 Offload

Certifications CE,FCC,ROHS,ISO9001
