PCIe 2XSFP Gigabit Unidirectional Fiber Card IntelI350 Chipset

  • Details
  • Specifications
  • packing

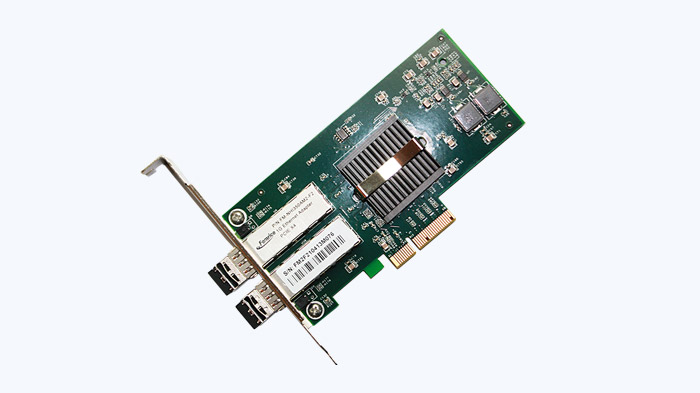

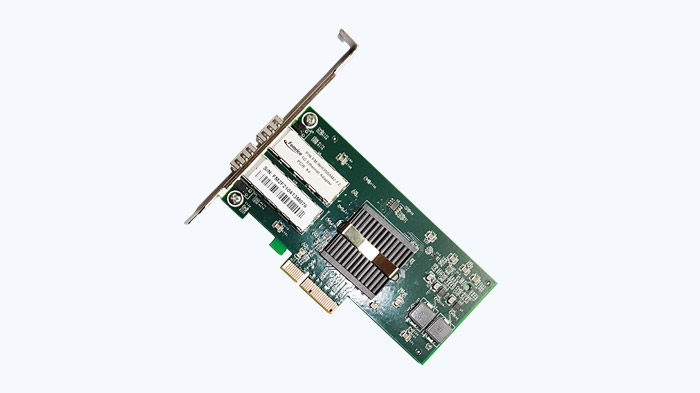

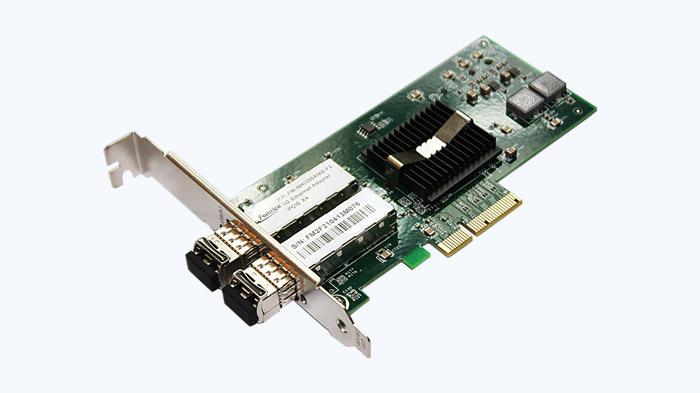

FM-NHI350AM2-F2 is an Ethernet gigabit optical interface network card, which has two 1000M LC optical fiber interfaces, can support the transmission bandwidth of 2000Mbs, and supports the PCI-E X4 standard slot, ensuring the efficient and stable operation of the network card. In addition, the network card also supports VLAN, QOS policy, flow control and other functions, which are suitable for medium and large LAN applications.

Product Code FM-NHI350AM2-TX/RX
Product Name PCIe 2XSFP Gigabit Unidirectional Fiber Card
Chip-set Intel I350 Gigabit Controller
Bus Type PCIe v2.1 (5.0GT/s) X4/X8/X16
Every Port Transmission Rate 1000M
Network interface type SFP Slot *2
Network standard IEEE802.3
Brackets Half and Full Brackets
Operating Temperature 0℃~55℃(32 °F to 131 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Compatible operating system Windows Server 2003 SP2, Windows Server 2008 SP2, Windows Server 2008 SP2 Core, Windows Server 2008 SP2 (w/ Hyper-V role), Hyper-V Server 2008 SP2,Windows Server 2008 R2, Windows Server 2008 R2 Core, Windows Server 2008 R2 (w/Hyper-V role), Hyper-V Server 2008 R2, WinPE 1.6 (2003 PE), WinPE 2.1 (2008 PE), WinPE 3.0 (2008 R2 PE), Linux* Stable Kernel version3.X, 2.6, X ., Linux RHEL 5.6, Linux RHEL 6.1, Linux SLES 10 SP4, Linux SLES 11 SP1, DOS* NDIS 2, DOS ODI, UEFI+ 2.1, UEFI+ 2.3,VMware* ESX 4.03 ,VMware ESX 4.1
Special functions Intel Virtualization Technology for Connectivity; With virtual machine device queue (VMDq) and SR-IOV; Advanced packet filtering (by port); VLAN support, VLAN tag insertion, removal and packet filtering; ISCSI acceleration, iSCSI remote boot; Adapter fault tolerance and switch fault tolerance; Adaptive load balancing; Grouping support; TCP checksum offload, TCP segmentation/large send offload, and interrupt mitigation; IPv6 Offload
Certifications CE,FCC,ROHS,ISO9001
