PCIe 25G Quad Port Ethernet Optical Server adapter IntelE810XXVAM2

  • Details
  • Specifications
  • packing

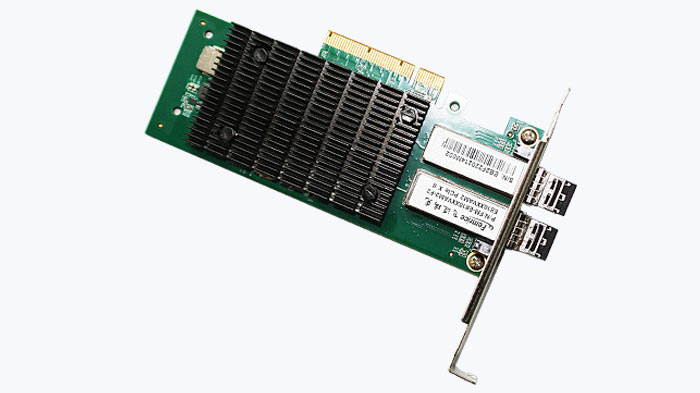

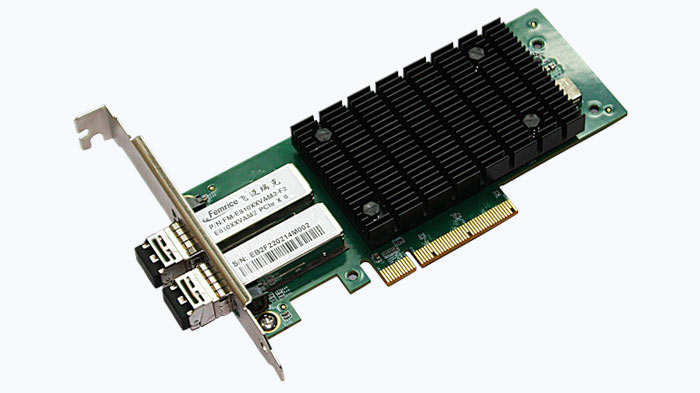

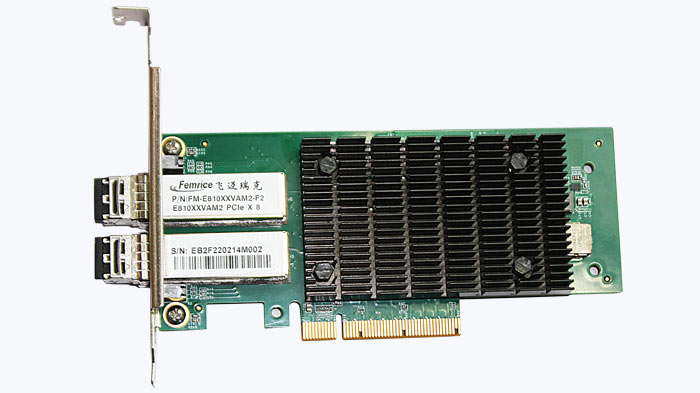

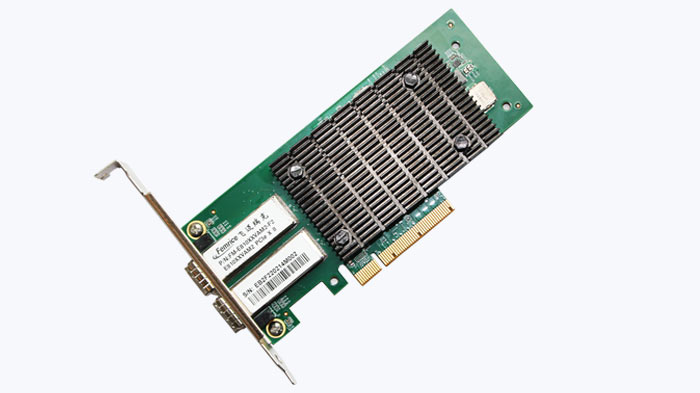

Femrice’s FM-E810XXVAM2-F2 is an Ethernet 25G network card using Intel E810XXVAM2 chip. It has two 25G optical fiber interfaces, which can support two 25Gbps transmission bandwidth. It also supports PCI-E X8 standard slots, ensuring the efficient and stable operation of the network card. In addition, the network card also supports VLAN, QOS policy, flow control and other functions, which are suitable for medium and large LAN applications

Product Code FM-E810XXVAM2-F4
Product Name PCIe 25G Quad Port Ethernet Optical Server adapter
Chip-set IntelE810XXVAM2  25 Gigabit Controller
Bus Type PCI Express 3.0/4.0 x8/X16
Every Port Transmission Rate 1/10/25Gbps/S
Network interface type SFP28 Slots *4, two LC fiber-optic connectors,plug-gable

And changeable SFP28 Slot

Network standard IEEE 1588
Brackets Half and full brackets
Operating Temperature 0℃~55℃(32 °F to 131 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Compatible operating system WindowsServer2016,WindowsServer2016R2, WindowsServer2016/R2,WindowsServer2019, WindowsServer2019/R2,WindowsServer2019/R2,Linux RHEL 7.x/8.0,Linux Sles 12.x,Linux Sles 15.x, Linux Ubuntu 16.x LTS,Linux Ubuntu 18.x LTS, Linux FreeBSD 11.x/12.x
Special functions Intel Virtualization Technology for Connectivity;

With virtual machine device queue (VMDq) and SR-IOV;

Advanced packet filtering (by port);

VLAN support, VLAN tag insertion, removal and packet filtering;

ISCSI acceleration, iSCSI remote boot;

Adapter fault tolerance and switch fault tolerance;

Adaptive load balancing;

Grouping support;

TCP checksum offload, TCP segmentation/large send offload, and interrupt mitigation;

IPv6 Offload

Certifications CE,FCC,ROHS,ISO9001
